Monday, March 29, 2010

Enable FILESTREAM (RBS) for SharePoint 2010

    Technet article: http://technet.microsoft.com/en-us/library/ee748631%28office.14%29.aspx

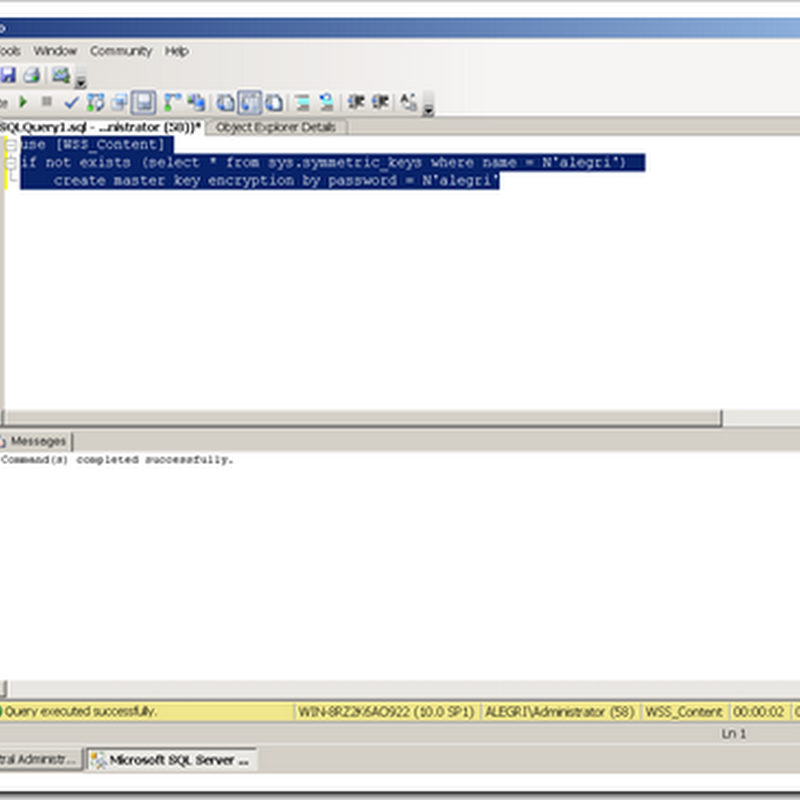

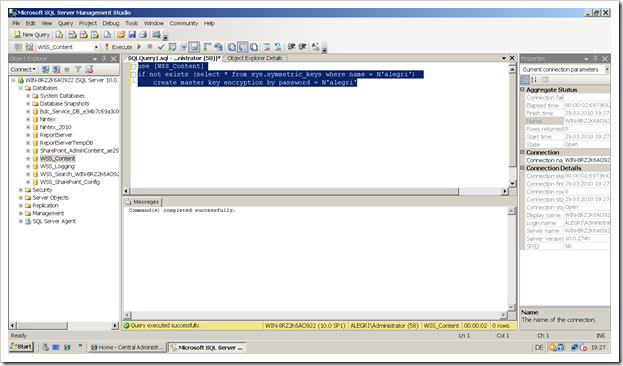

    Run the following commands in SQL Server management query window. Change the database name as needed.

    use [WSS_Content]

    if not exists (select * from sys.symmetric_keys where name = N'##MS_DatabaseMasterKey##')

    create master key encryption by password = N'Admin Key Password !2#4'

    clip_image001

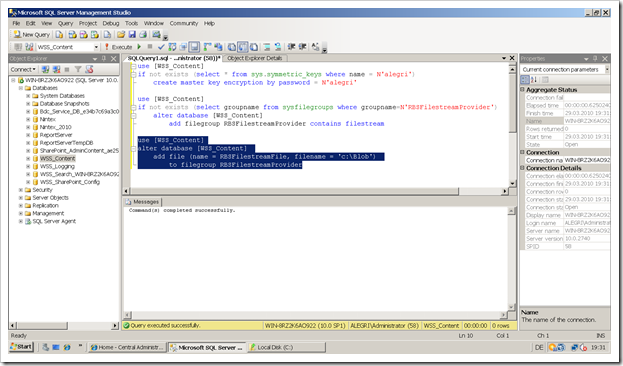

    use [WSS_Content]

    if not exists (select groupname from sysfilegroups where groupname=N'RBSFilestreamProvider')

    alter database [WSS_Content]

    add filegroup RBSFilestreamProvider contains filestream

    use [WSS_Content]

    alter database [WSS_Content]

    add file (name = RBSFilestreamFile, filename = 'c:\Blob')

    to filegroup RBSFilestreamProvider

    clip_image002

    After activating this three commands you will find some files in the new folder c:\blob. Important. This folder will be created by the sql command.

    clip_image003

    Install RBS

    http://go.microsoft.com/fwlink/?LinkId=177388

    clip_image004

    Do not run the msi file directly.

    On the database and first SQL server run the following command:

    msiexec /qn /lvx* rbs_install_log.txt /i RBS_X64.msi TRUSTSERVERCERTIFICATE=true FILEGROUP=PRIMARY DBNAME="WSS_Content" DBINSTANCE="" FILESTREAMFILEGROUP=RBSFilestreamProvider FILESTREAMSTORENAME=FilestreamProvider_1

    Fill in the SQL instance name for specific SQL server instances.

    Run the following command on all other SharePoint servers:

    msiexec /qn /lvx* rbs_install_log.txt /i RBS_X64.msi DBNAME="WSS_Content" DBINSTANCE="" ADDLOCAL="Client,Docs,Maintainer,ServerScript,FilestreamClient,FilestreamServer"

    Check rbs_install_log.txt after installation:

    >>>> Product: SQL Remote Blob Storage -- Installation completed successfully.

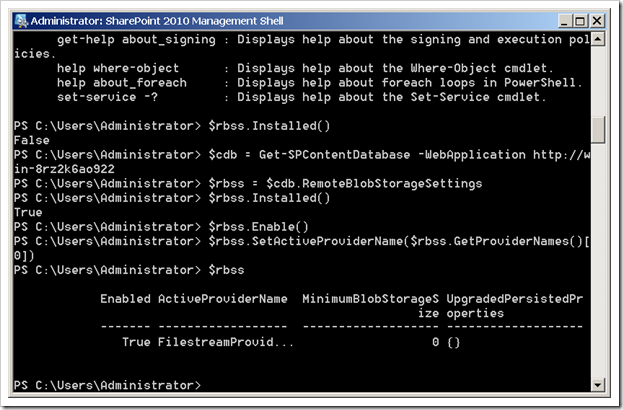

    To enable RBS on a specific web application open the SharePoint Management Shell on run this commands

    $cdb = Get-SPContentDatabase –WebApplication http://moss2010server

    $rbss = $cdb.RemoteBlobStorageSettings

    $rbss.Installed()

    $rbss.Enable()

    $rbss.SetActiveProviderName($rbss.GetProviderNames()[0])

    $rbss

    clip_image005

    After the activation you can find additionals files and folder in the blob folder

    clip_image006

    After uploading a file (in this example rbs_install_log.txt) in a document library

    clip_image007

    You will find new folders and files (with guid names) in the blob directory structure.

    clip_image008

    If you upload a new version of this file, the new file will be place in the same folder with a new name. SharePoint does not save the difference only.

    clip_image009
